Screen Rating Ss Sintered Metal Powder Filter 304 Reservoir 200um

Product Categories
Anping County Kunya Wire Mesh Products Co., Ltd.
Contact Now

Screen Rating Ss Sintered Metal Powder Filter 304 Reservoir 200um

Brand Name : KUNYA

Model Number : KYF-21125B

Place of Origin : CHINA

MOQ : 1 Piece

Price : USD$1.95-USD$35.65

Payment Terms : T/T, Western Union

Supply Ability : 165200 Pieces per month

Delivery Time : 25 days

Packaging Details : wooden case

Product name : Powder Sintered Reservoir Filter

Filter rating : 0.2um-200um

Shape : customized

Thickness : 1-5mm

Color : stainless steel, bronze

Application : Chemical Industry

Working temperture : -200℃-600℃

Material : Stainless steel, Titanium,Bronze

Advantage : long life span

Length : 5-1000mm

Contact Now

550 Degree High Temperature Titanium Sintered Powder Porous Metal Filter

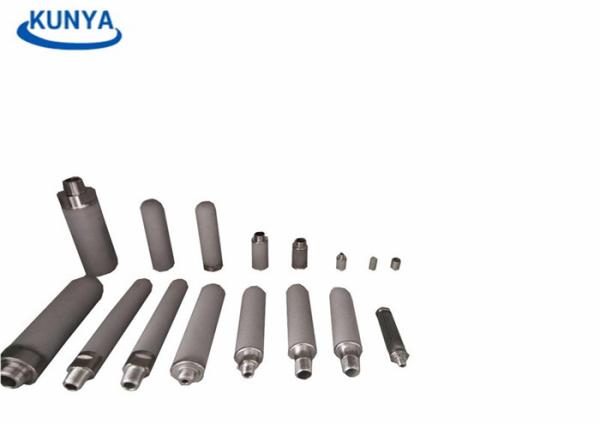

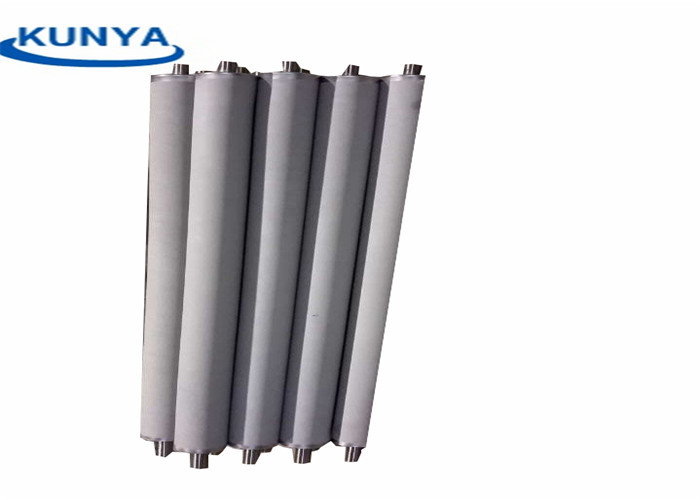

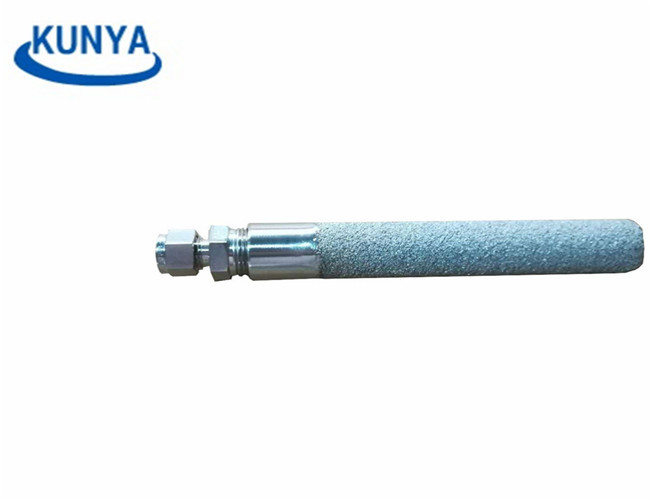

Powder Sintered Reservoir Filter Introductions

Sintered metal powder filter elements, also called sintered metal porous filters, adopt stainless steel 304, 304L, 316, 316L powder as raw materials and then produced through sizing, molding and sintering processes. Because of stainless steel material, so the sintered metal powder filter elements are also known as sintered stainless steel powder filter element.

Powder Sintered Reservoir Filter can be made into tube type and plate type. Because of the good permeability, filter fitness and high stock utilization, they are widely used in medical industry, chemical industry, metallurgical industry and field of gas purification.

Powder Sintered Reservoir Filter Features

Applications for sintered stainless steel powder filter element:

· Dust, bacteria and oil fog removal of gas and steam.

· Noise reduction, gas buffer.

· The recycle of catalysts.

· Decarburization filtration.

· Viscous liquid filtration.

· Strong polar solvent filtration.

· Retention of particles from off-gas of fluidized beds.

· The filtration and separation of pharmaceutical, beverage, food, metallurgy, petroleum and other fields.
Features:

· High filtration efficiency.

· High mechanical strength.

· High permeability and porosity.

· Anti-corrosion and anti-pressure.

· Even distribution of pores catalysis recycling accurate filtering.

· Can be used at high and low temperature.

· Easy to clean and can be used for many times.

· Long service life.
Specifications:

· Item: sintered stainless steel powder filter element.

· Material: stainless steel powder.

· Thickness of wall: 1.0 mm, 2.0 mm, 3.0 mm, 4.0 mm, 5.0 mm, etc.

· Length: 10", 20", 30", 40".

· Working Temperature: -200 °C to 1000 °C.

Powder Sintered Reservoir Filter Types

Name
Filter rating 5-70um sintered powder porosity tube metal filter
Production
Diameter (Width)
Thickness
Customized
Sintered porous round discs
φ5-φ400mm
φ5-φ400mm
1-20mm
Yes
Sintered porous sheets
5-600mm
5-400mm
1-20mm
Yes
Sintered porous tubes
100-1200mm
φ20-φ200mm
1-10mm
Yes
Sintered porous cartridge
100-1200mm
φ20-φ200mm
1-10mm
Yes
